ASS Threaded Terminal, Mini type with internal thread

ASS Threaded Terminal, Mini type with internal thread

ASS Terminals, Mini type are used like the well-known standard type. But
what does „Mini“ mean and what is the purpose? Our terminals Mini type
are available for rope diameter 3 mm up to 10 mm. The diameter of the
thread is one size smaller than the one of the standard type, e. g. M 6 for
4 mm rope instead of M 8 for 4 mm rope. Moreover, the depth of the bore
hole L2 is less at the same durability. This data refers to wire ropes EN
12385-4 6 x 7-WSC and 6 x 19 M-WSC.

Merk: ASS

Documentatie:

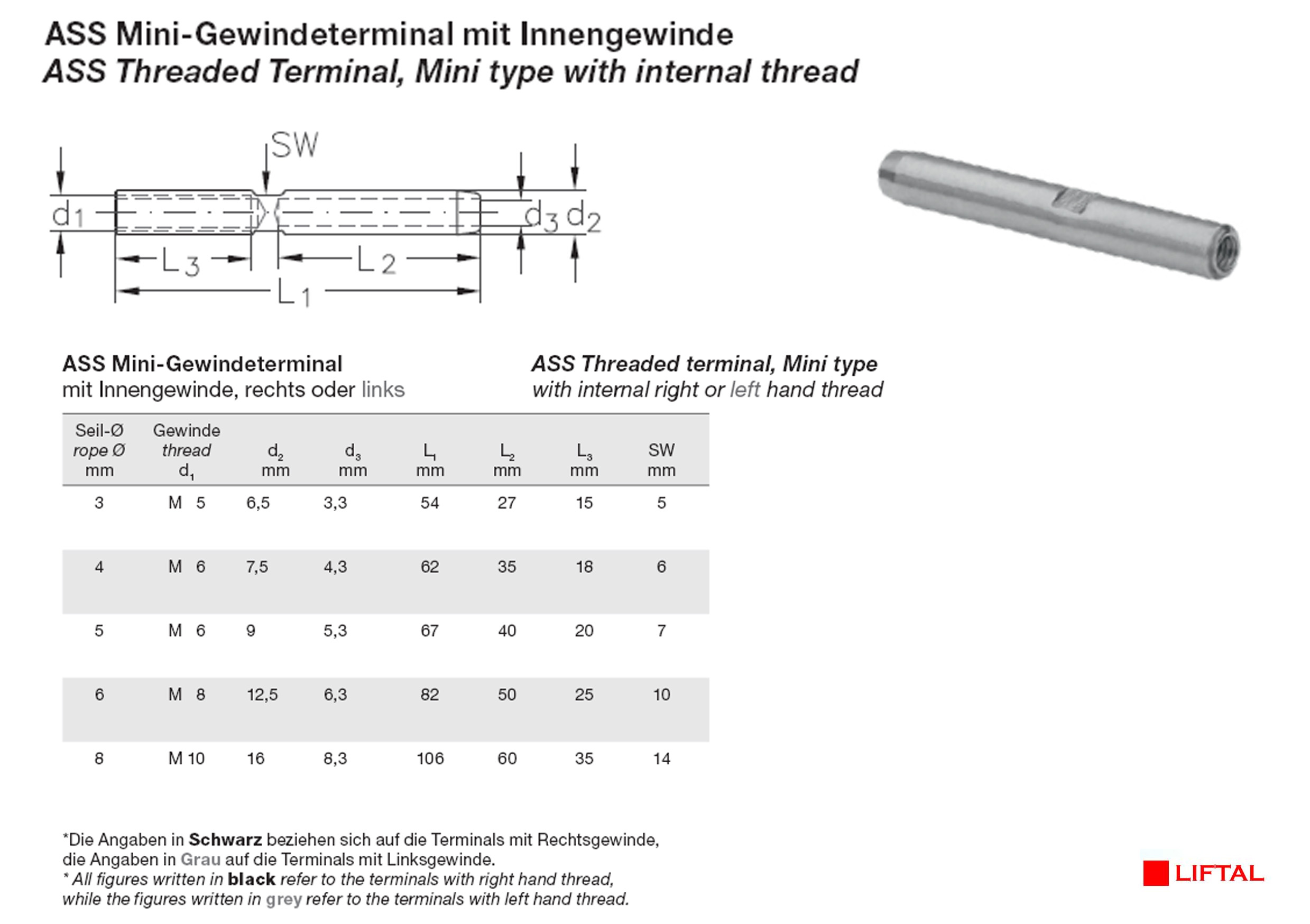

ASS_015.jpg - download
